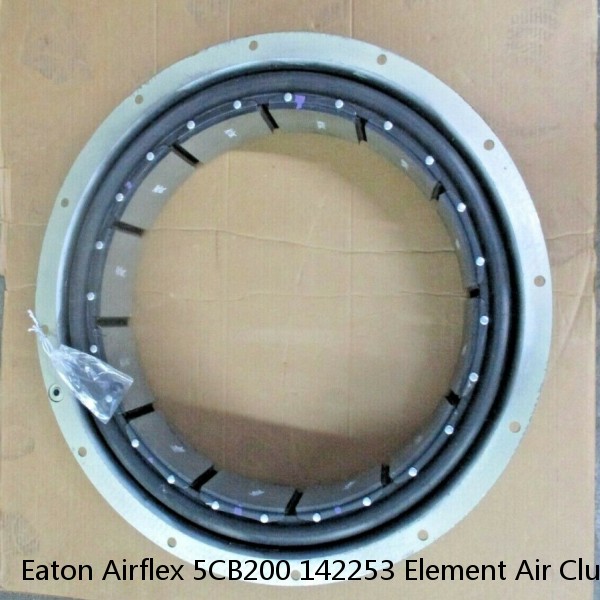

Eaton Airflex 5CB200 142253 Element Air Clutch Brakes

Eaton Airflex 5CB200 142253 Element Air Clutch Brakes SPECIFICATIONS

W Width (in):21.28 in; 541 mm
L (Bolt) Size (mm):10 in; 254 mm
V MM:2.36 in; 60 mm
O4 (mm):11.36 in; 289 mm
W Width (mm):Air Applied
D24 (in):45.51 in; 1156 mm
O4 (in):45.51 in; 1156 mm
G1 MM:42 in; 1067 mm

Download Eaton Airflex 5CB200 142253 Element Air Clutch Brakes Spec Sheet
