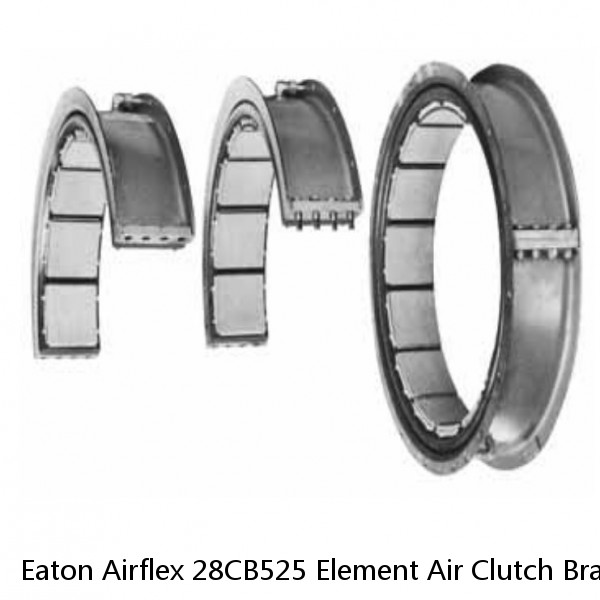

Eaton Airflex 28CB525 Element Air Clutch Brakes image

Back to product page

You Might Also Like

Eaton Airflex 28CB525 Element Air Clutch Brakes Details

Cs Centrifugal Loss Constant (bar/rpm2):0.56 in; 0.56 mm
D2 MM:6.13 in; 156 mm
D25 Inch:0.31 in; 8 mm
D24 (in):22.500 in; 571.5 mm
Cs Centrifugal Loss Constant (psi/rpm2):14.22 in; 361 mm
G (in):22.25 in; 565 mm
Air Tube Cavity (dm2):0.38 in; 10 mm
Friction Lining Thickness Worn (in):Eaton-Airflex
D2 (in):2.88 in; 73 mm
D25 (mm):0.58 in; 15 mm
Friction Area (in2):205 in²; 1322 cm²
Friction Area (cm2):1500 rpm
D2 (mm):95 in³; 1.56 dm³
Number of Hole L:8
Centrifugal Loss Cs:1.93 E-06 bar/rpm2; 28 E-06 psi/rpm2
Dimension O4 (Size):3/8-18 NPT
Dimension O4 (Number):4
Minimum Drum Diameter:13.91 in; 353 mm
Friction Shoe Width (W):5.00 in; 127 mm
Tolerance for Sizes (G):+0.000/-0.005 in; +0.00/-0.20 mm
Friction Lining Thickness:0.32 in
New Friction Lining Thickness:8 mm
Torque Rating (75 psi/5.5 bar):39.2 lb·in; 4.43 Nm
Worn Friction Lining Thickness:0.16 in; 4 mm
